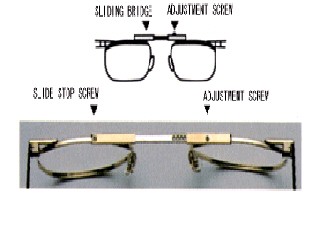

Just release the screw over the right eye wear and set the desired bridge width in one of the four adjustment holes paced 2 mm apart. Replace screw and the adjustment is set.



Hold end pieces and slide bridge to maximum open position before wearing

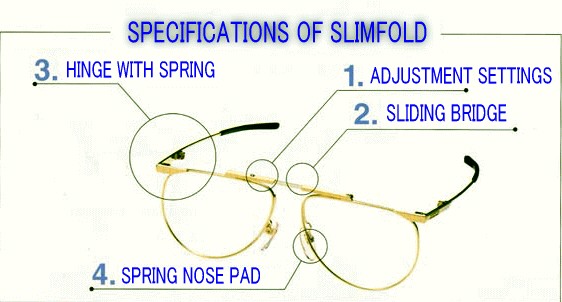

The temples of the slimfolds have been developed incorporating a unique hinge mechanism.

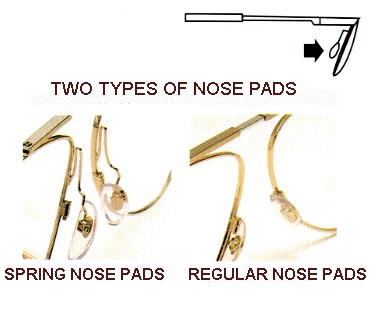

The soft nose pads are fixed onto spring toggle wires enabling an adjustable and comfortable fit on the bridge of the nose



2.Sliding bridge

AR015002

3. Hinge with spring

AR020602

Nose pads

AR019202
AR021604

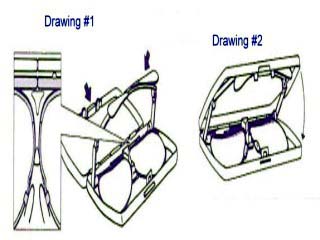

When the lid is opened by depressing the latch , the temple positions are restored to the original state and slimfold is ready for removal from the case. When returning slimfold to the case, place slimfold in the case as shown in the picture -1 by simply closing the lid, slimfold folds into the case as shown in the above drawing.

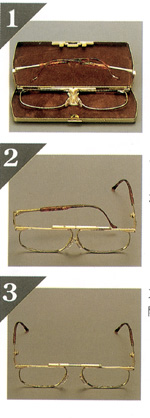

Hold end pieces and slide bridge to maximum open position.

Open the temples

AR020102
AR018402
AR018502

(Before wearing) hold end pieces and slide bridge to maximum open position. Don’t hold any other parts when sliding bridge to avoid any damage.

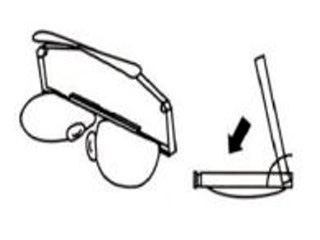

To return frame to case- take off slimfold with both hands and slide the bridge to the closing position and place the frame in the case. Don’t temple down by hand. By simply closing the lid, the frame folds into the case.

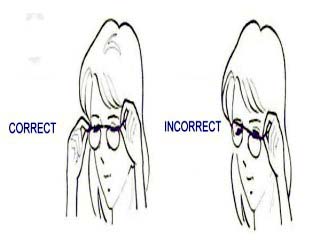

Use both hands when placing frame on face for a proper fit.

AR020502
AR021705
AR017903

   SLIMFOLD BASIC SF-005

KANDA OPTICAL SLIMFOLD FOLDING SPECTACLE FRAMES OF JAPAN
